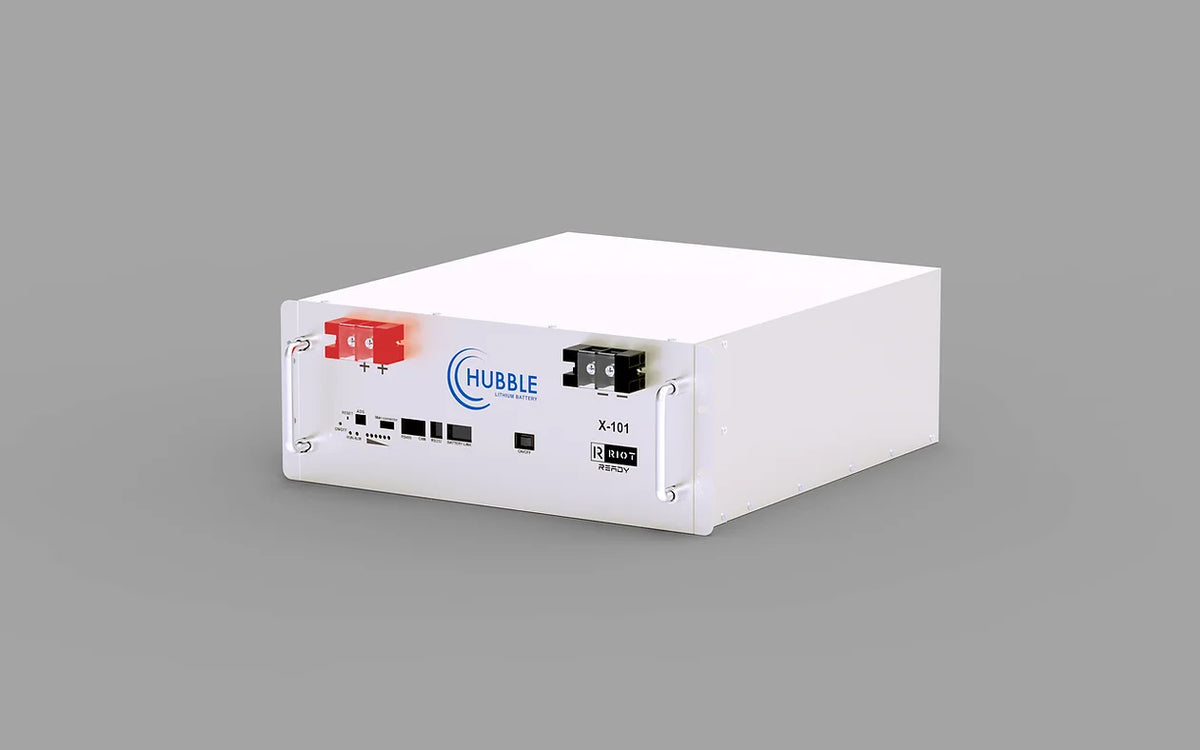

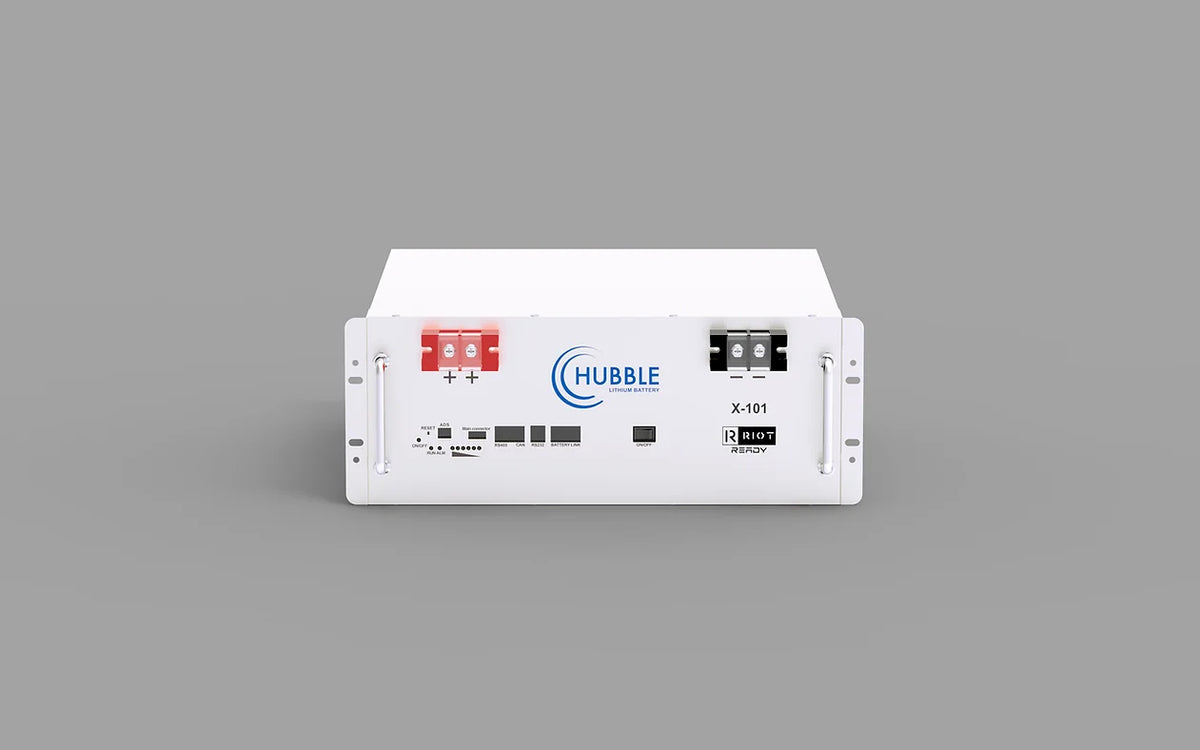

X-Series X-101 51V 5.5kWh Lithium Rackmount 4U

Features:
Low self discharge
High cycle and service life
1C High performance lithium battery
Heavy duty handles for easy handling
Installs easily in a standard server rack
Excellent high temperature performance
Advanced BMS with current limiting function
Compatible with most inverters and chargers
High energy density and conversion efficiency
Cloudlink integration ready for cloud monitoring
Complete with integrated Battery Management System
Built-in protection for over-charge, over-discharge & over-temperature
CAN Bus, fully integrates and communicates with leading Inverter brands

Technical Specifications:
Rated Capacity (5HR): 110Ah
Nominal Voltage: 48V
Discharge Ending Voltage: 42.0V
Equalized Charge Voltage: 53.6V
Max. Charging Current: 100A
Max. Continuous Discharging Current: 100A
Cell C Rating: 1.0C
Weight: Approx. 42kg
Configuration: 4 U
Parallel: Parallel connection up to 15 packs with full communication
Dimensions (W x D x H): 442mm x 495mm x 177.5mm
Maximum DC Limits: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232
Cells: New Li-ion Prismatic Cells
Design Life: +/- 15 years Cycle Life @ 1C+/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD
Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: White bake lacquer steel case
Operating Temperature
Charging: 0°C to +55°C
Discharging: -20°C to +55°C
Storage: -20°C to +55°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
