Hubble Energy

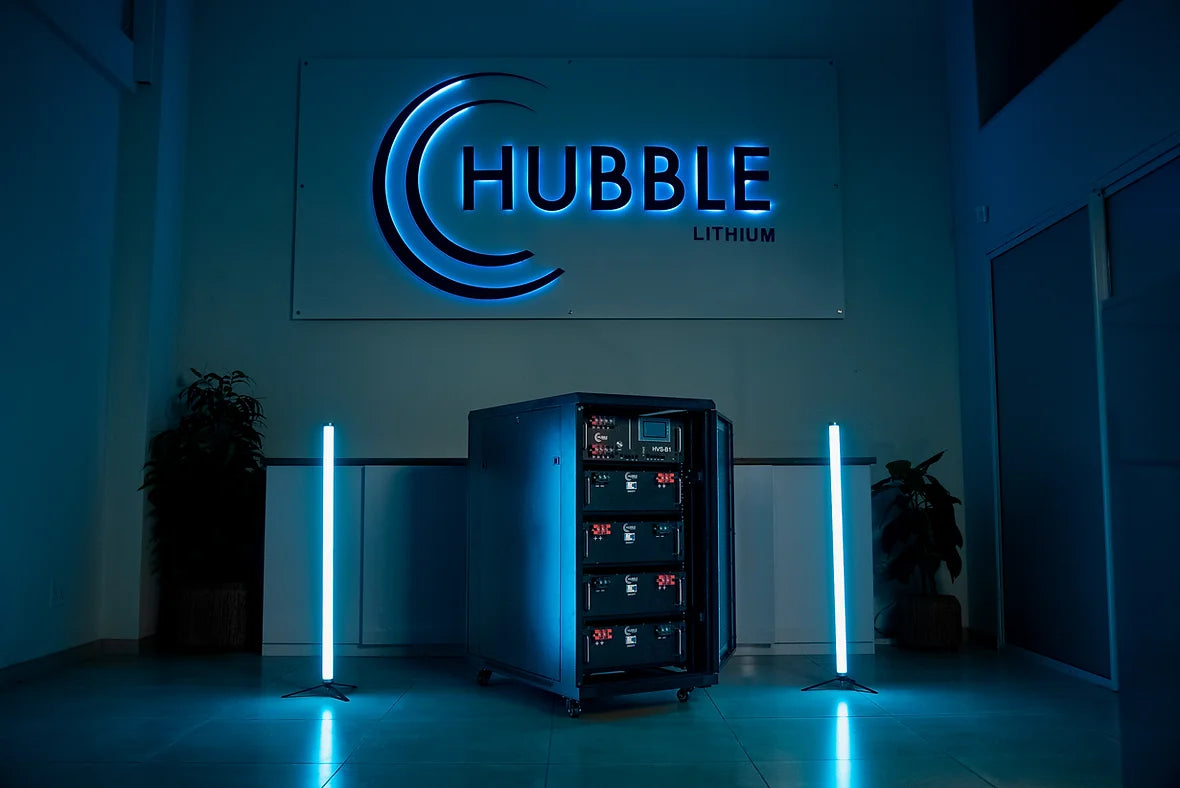

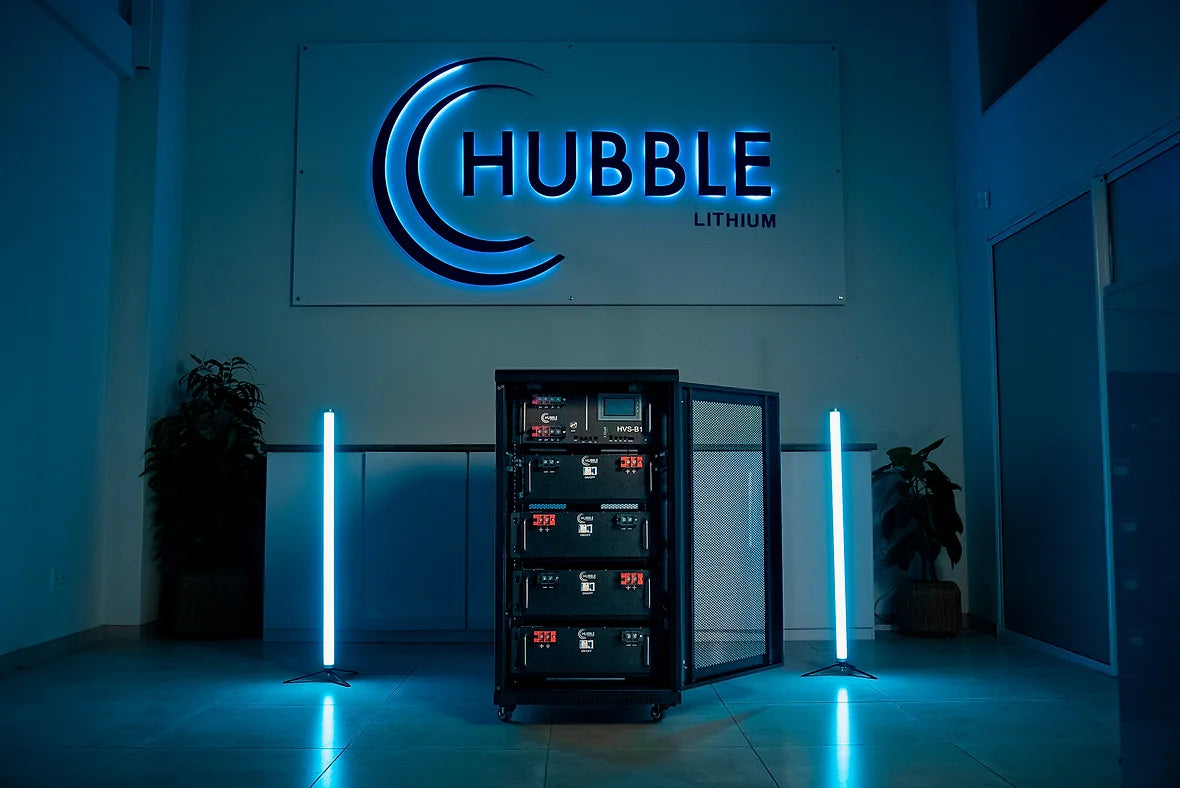

High Voltage System HV-204 204V 20.4kWh Lithium Rack Mount System
High Voltage System HV-204 204V 20.4kWh Lithium Rack Mount System
Regular price
R 149,800.00 ZAR
Regular price
Sale price
R 149,800.00 ZAR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features:
Intelligent Touch Screen
1C High-Performance ESS
High cycle and service life
Easy Rackmount System Modules
Firmware updates over the internet
Cloudlink 24/7 monitoring included
4 Packs of 16 Cell LiFePO4 battery system
Compatible with most High Voltage Inverters
Modular HV System for ease of transport and installation
CAN Bus comms fully integrates with leading inverter brands
Parallel up to 8 ESS Systems per string with full communications
Technical Specifications:
Model: Hubble HV-204
Rated Capacity (5HR): 100 Ah
Nominal Voltage: 204V
Discharge Cutoff Voltage: 179V
Equalized Charge Voltage: 223V
Max. Continuous Charging Current: 100 A Max.
Continuous Discharging Current: 100A
C Rating: 1C
Weight: Approx. 230kg without cabinet
Monitoring: Cloudlink
Parallel: Parallel connection up to 8 ESS systems with full communications
Dimensions (WxDxH) mm: Standard 22U Cabinet dimensions: 1200 (h) x 693 (w) x 1102 (d)
Ports: 1x CAN-bus, 2 x Battery Link Ports
Cells: 16 Cells per pack. 64 Cells Total. New Li-ion Prismatic LiFePO4 cells
Design Life: Above 6000 cycles @ 80% DOD +/- 4 000 Cycles @ 100% DOD
DOD Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: Black baked lacquer steel case
Operating Temperature: Charging: 0°C to +55°C | Discharging: 0°C to +55°C | Storage: 0°C to +55°C
Protection: Circuit Breaker per Pack, BMS Over/Under Voltage Protection, Current Limiting
Intelligent Touch Screen
1C High-Performance ESS
High cycle and service life
Easy Rackmount System Modules
Firmware updates over the internet
Cloudlink 24/7 monitoring included
4 Packs of 16 Cell LiFePO4 battery system
Compatible with most High Voltage Inverters
Modular HV System for ease of transport and installation
CAN Bus comms fully integrates with leading inverter brands
Parallel up to 8 ESS Systems per string with full communications
Technical Specifications:
Model: Hubble HV-204
Rated Capacity (5HR): 100 Ah
Nominal Voltage: 204V
Discharge Cutoff Voltage: 179V
Equalized Charge Voltage: 223V
Max. Continuous Charging Current: 100 A Max.
Continuous Discharging Current: 100A
C Rating: 1C
Weight: Approx. 230kg without cabinet
Monitoring: Cloudlink
Parallel: Parallel connection up to 8 ESS systems with full communications
Dimensions (WxDxH) mm: Standard 22U Cabinet dimensions: 1200 (h) x 693 (w) x 1102 (d)
Ports: 1x CAN-bus, 2 x Battery Link Ports
Cells: 16 Cells per pack. 64 Cells Total. New Li-ion Prismatic LiFePO4 cells
Design Life: Above 6000 cycles @ 80% DOD +/- 4 000 Cycles @ 100% DOD
DOD Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: Black baked lacquer steel case
Operating Temperature: Charging: 0°C to +55°C | Discharging: 0°C to +55°C | Storage: 0°C to +55°C
Protection: Circuit Breaker per Pack, BMS Over/Under Voltage Protection, Current Limiting
